Enhanced development environment accommodating to Web linkage ASP (Windows NT only)

1. Development environment in the ASP environment

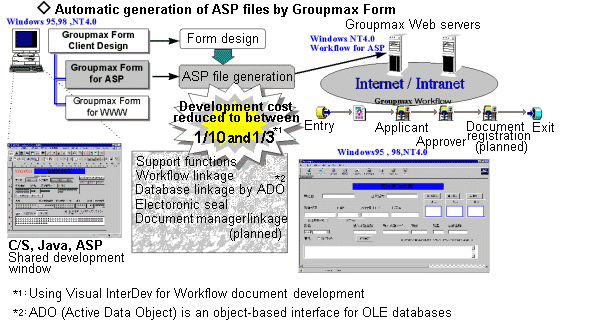

2. Support of the automatic generation of ASP files by the Groupmax Electronic Form function

3. Workflow ASP Development Kit

The development environment in the Groupmax ASP (Active Server Pages) environment is shown below.

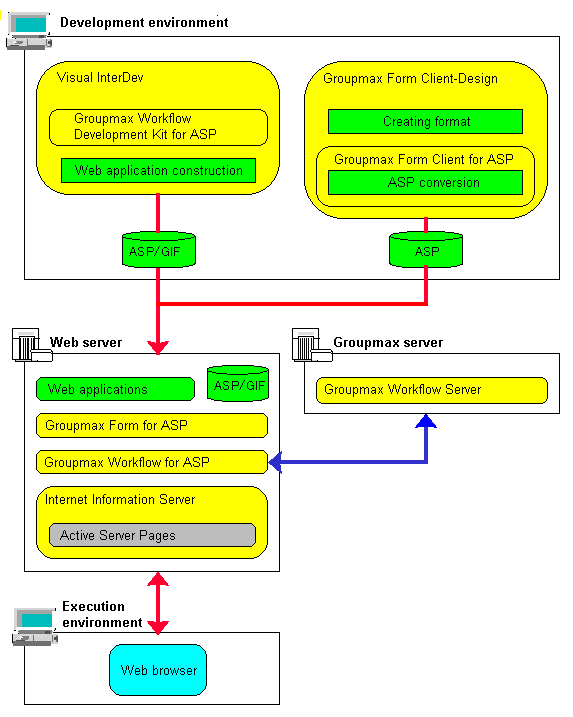

System configuration in Groupmax ASP development environment

• In addition to electronic forms with Form Client and electronic forms in a Java Applet version used from a Web browser, you can use ASP-version electronic forms that operate in the Microsoft ASP environment usable from a Web browser.
• Workflow forms in an ASP environment that were developed with Microsoft Visual InterDev in the past can now be generated from the Groupmax electronic form function (optional operation and development product - development support client option product Groupmax Form Client - Design). This has reduced development time from one third to one tenth of the conventional time.

ASP development environment for Web linkage

(1) Outline of functions

The workflow ASP development kit supplies design time controls for simple tasks such as creating form shelves, the INBOX, and transmission logs in Microsoft Visual InterDev, and provides templates for tasks such as destination specification, sending back, and transfer. These functions enable you to construct a workflow Web application without writing any script when using the optional execution environment product - Web linkage function extended option Groupmax Workflow Version 5 for Active Server Pages.

Design time control is one of the control functions usable in Microsoft Visual InterDev. It generates scripts for executing supported functions from each control function.
The design time control supplied by Groupmax Workflow - Development Kit for ASP automatically generates scripts satisfying each function of Groupmax Workflow such as reception tray display and form shelf display.

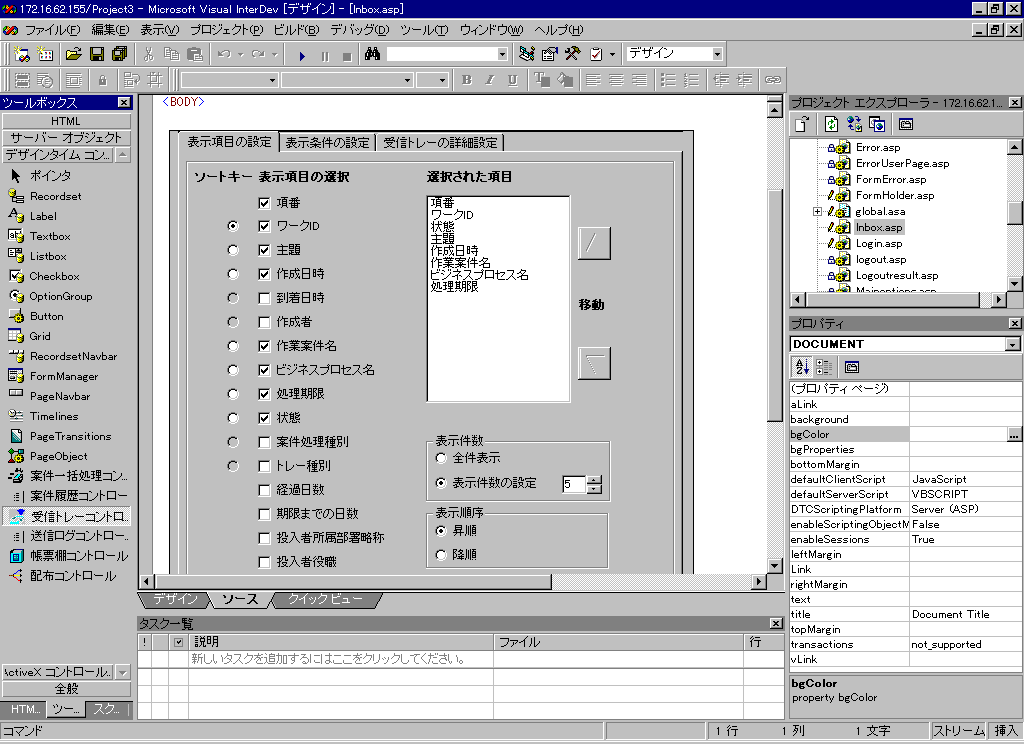

Design time control for reception tray display

- Clicking on the diagram on the left will display a larger image.

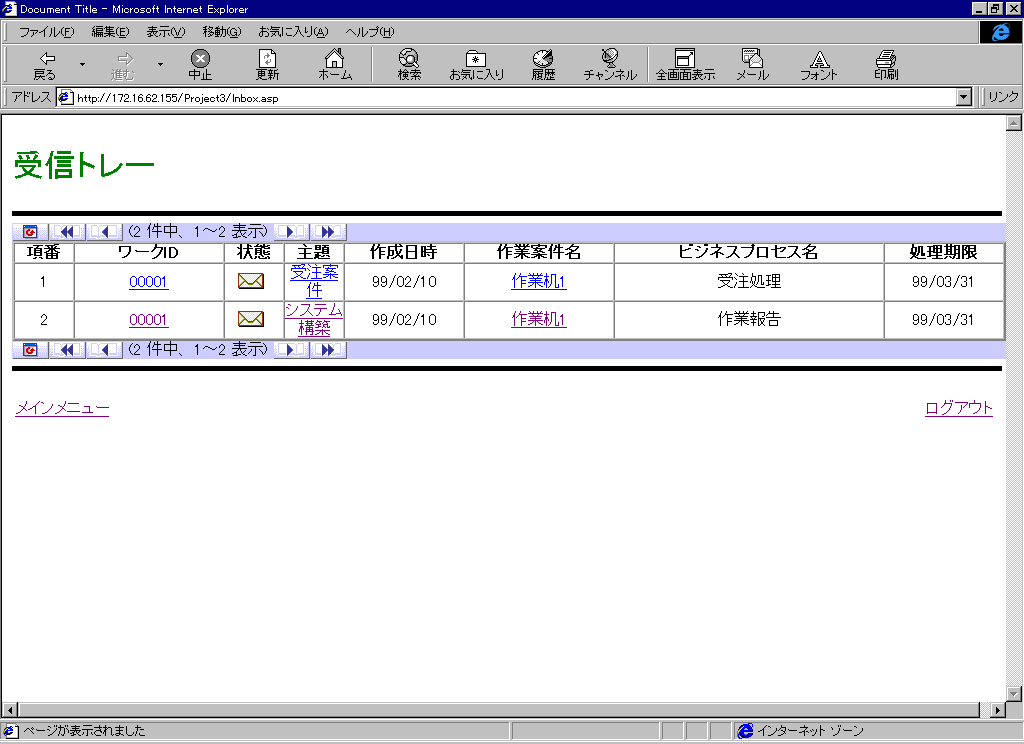

Display of reception tray from Web browser

- Clicking on the diagram on the left will display a larger image.

Templates are Web pages on which each of the Groupmax Workflow functions is incorporated. These Web pages consist of several ASP files, in which necessary scripts are already described, and several image files to be referenced when displayed by the Web browser.

Type		Description
Design time control	Distribution control	Business process name/task name is associated with a Web page
	Controlling a reception tray	Creating a page displaying a reception tray
	Controlling the form shelf	Creating a page displaying a form shelf
	Controlling batch control of work-items	Creating a page displaying a reception tray having a work-item batch processing function
	Controlling transmission log	Creating a page displaying transmission log
	Controlling work-item log	Creating a page displaying work-item log
Template	Consultation template	Conducting work-item consultation
	Transfer template	Transferring work-items
	Sending-back template	Sending back work-items
	User history deletion template	Deleting user history
	Cancellation template	Canceling work-items
	Withdrawal template	Withdrawing work-items
	System destination template	Displaying organizational hierarchy and a user list
	Error template	Displaying error information
